WiFi Dual Band External Antenna,2400-2500MHz,5150-5850MHz,SMA Elbow,T111C-WiFi

频率范围:2400-2500MHz/5150-5850MHz
尺寸:∅ 50*16.7
驻波比:≦1.5
连接器型号:SMA Elbow
平均增益:≧1.7dBi
外壳材料 /颜色:ABS/Black
输入阻抗:50 Ω
辐射方向:全向
极化方式:线极化
工作温度:-40℃- +85℃

Antenna Passive Parameters

VSWR &Return Loss


Frequency (MHz)2400250051505850
Return Loss-23.38-14.62-14.29-15.02
VSWR1.141.451.51.43

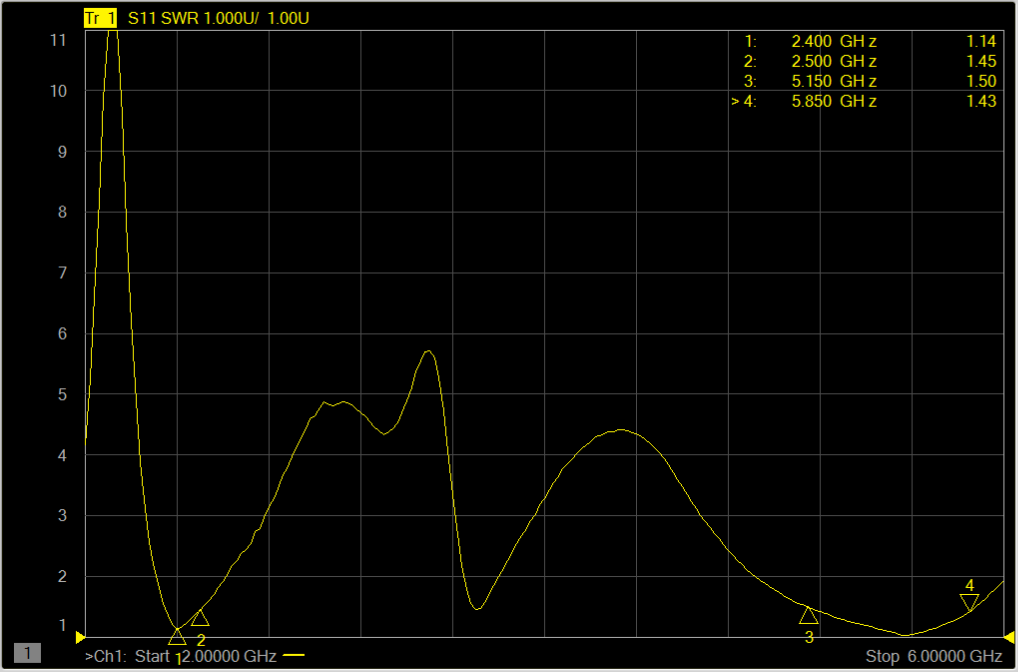

VSWR


VSWR

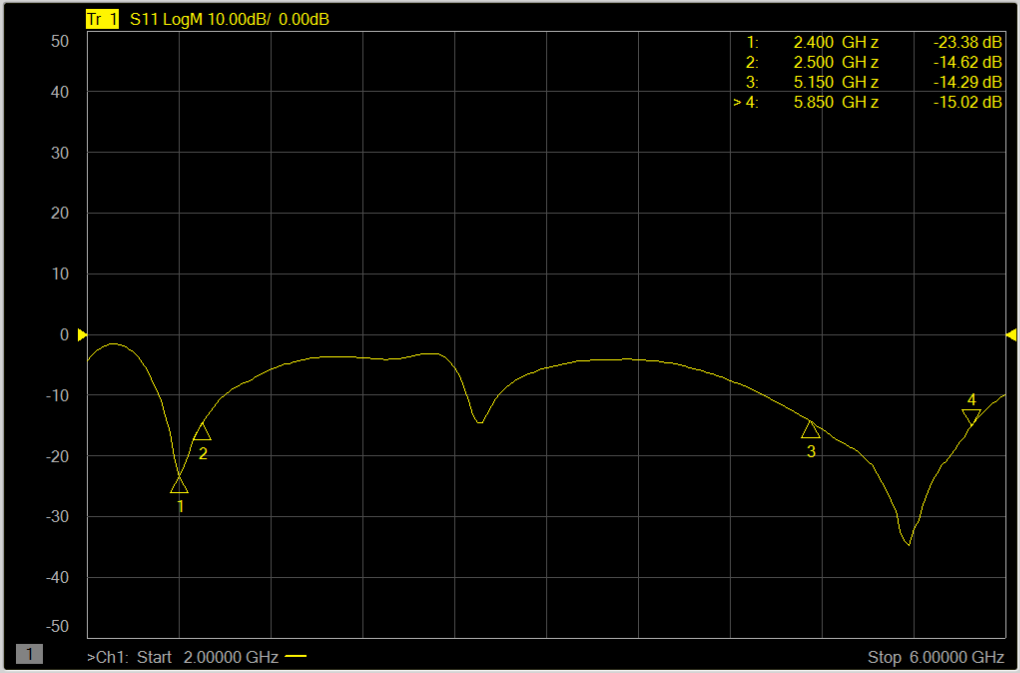

Return Loss


Return Loss


Gain and Efficiency


Frequency(MHz)240024502500515055505850
Efficiency(% )59.2364.1366.3680.3285.9674.02
Gain .dBi0.260.740.881.312.471.81

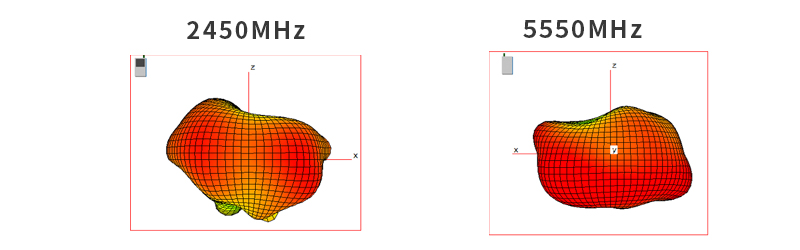

Antenna Radiation Pattern


Antenna Radiation Pattern
