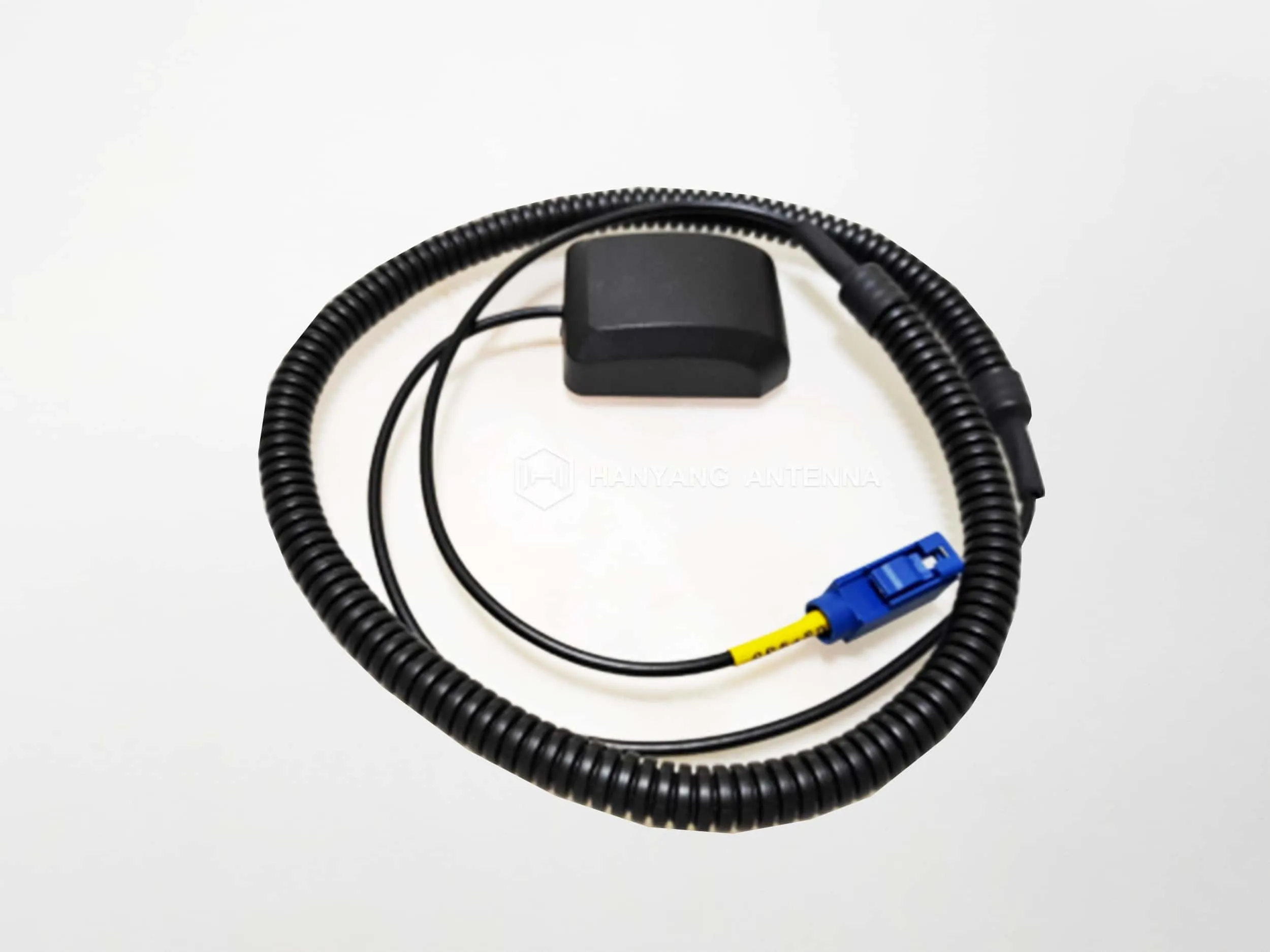

GPS+BD GNSS External Active Antenna,vehicle,car,SMA,Connector Customizable,F01201000107

GNSS 天线

1
1

GPS+BD GNSS External Active Antenna,vehicle,car,SMA,Connector Customizable,F01201000107

频率范围:1575.42MHz/1561MHz
尺寸:50.4*38.3*17 mm
驻波比:≦2.0
连接器型号:SMA Fakra/MCX/MMCX(Customizable)
输入阻抗:50Ω
外壳材料/颜色:ABS/Black
极化方式:圆极化
电缆型号/高度:RG174
辐射方向:全向
工作温度:-40℃- +85℃

GPS&BD Antenna Performance


ParametersSpecification
Receive Frequency RangeGPS:1575.42±2.5MH
BD:1561.098±2.5MHz
Ceramic Center FrequenciesGPS:1568 ±5MHz
BD:1568±5MHz
Passive Gain1.92 dBi
1.6 dBi
VSWR≤ 2.0
Polarization Mode(RHCP)


LNA Performance Specifications


ParametersSpecification
Gian30±2dB
Coefficient of Noise≤2.0dB
Input VSWR≤2.0
Output VSWR≤2.0
VoltageDC3~5V
Amps8±3mA
Impedance50Ω


Return loss diagram


Frequency(MHZ)156015751590
Return Loss-9.66-9.79-3.35


Return loss diagram


Passive Gain and Efficiency


Frequency [MHz]1555156115751585
Efficiency(% )87.8993.3690.8665.74
Gain3.163.23.11.4


LNA VSWR/Gain


Frequency(MHZ)156015901575
VSWR1.0671.0631.063
Gain29.7330.1830.21


LNA VSWR/Gain


LNA Active Tests


Frequency [MHz]155515601565157515851595
Peak Gain [dB]34.7534.293331.6634.1627.88
Avg Gain [dB]29.1228.7327.6127.1829.5723.46


Antenna Radiation Pattern


Antenna Radiation Pattern
