External 5G Antenna indoor,IoT,600-960MHz,1710-2690MHz,3300-6000 MHz,SMA-J, F01201000310

5G外置天线

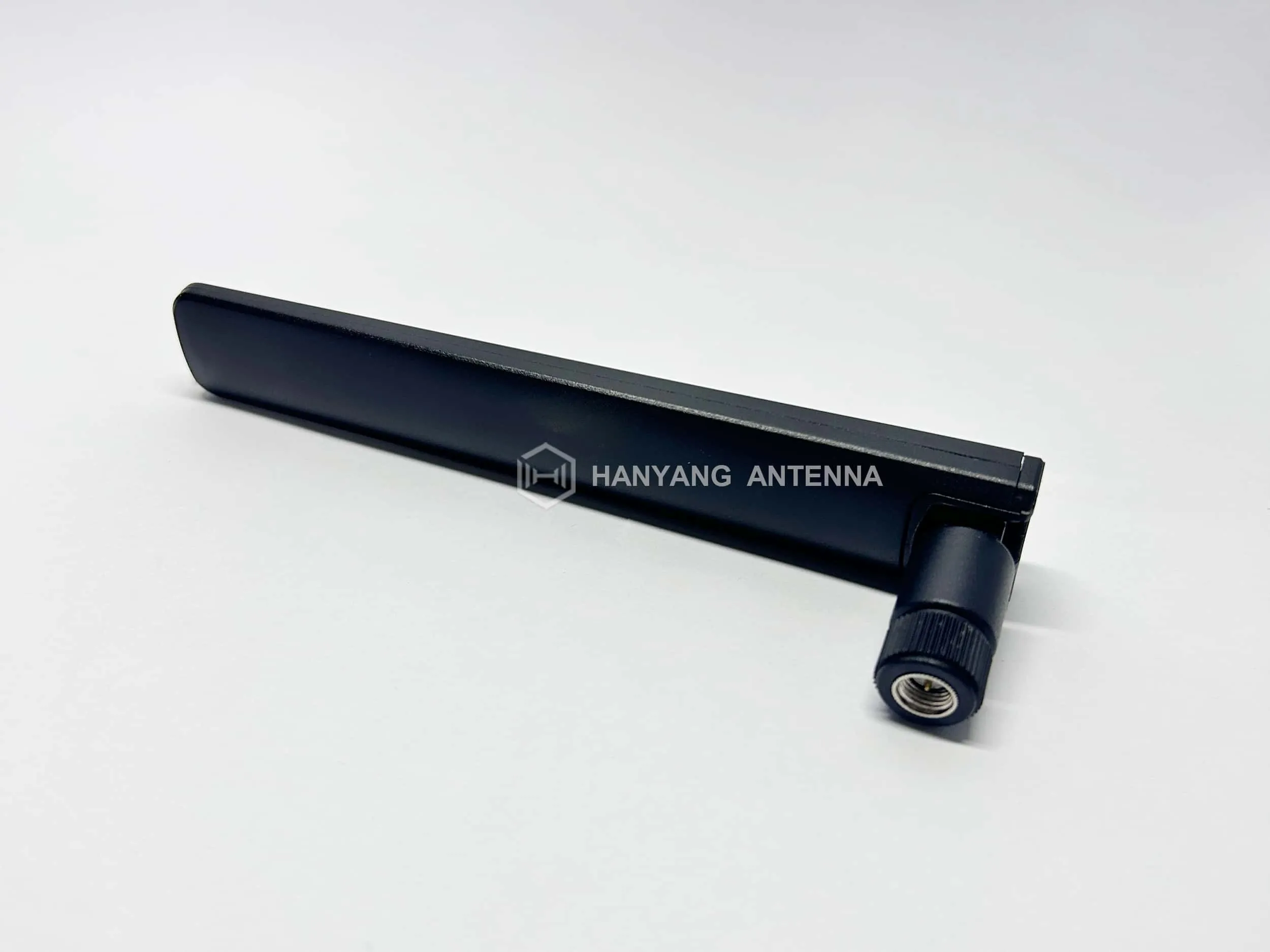

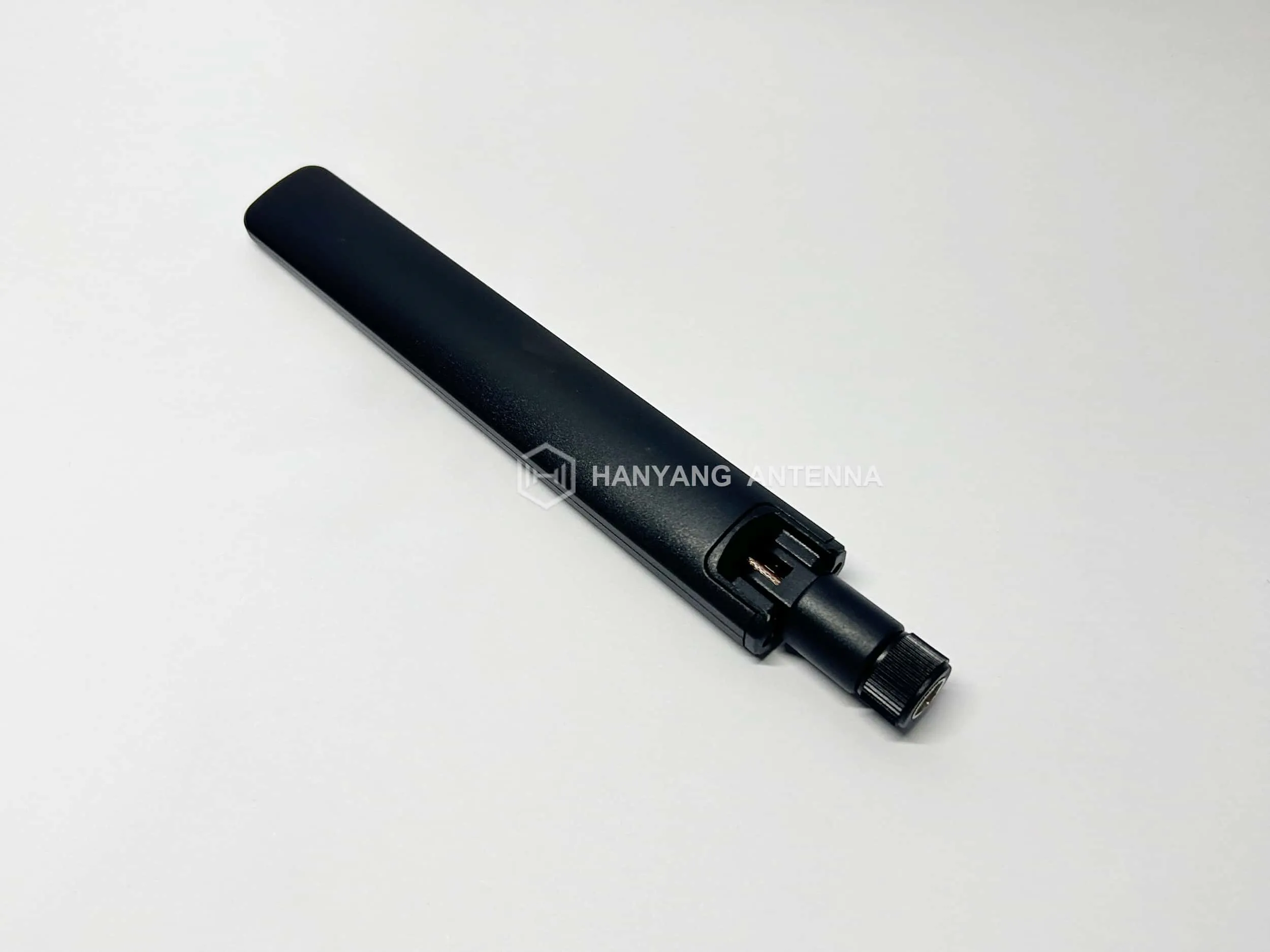

IMG_8379-2-1

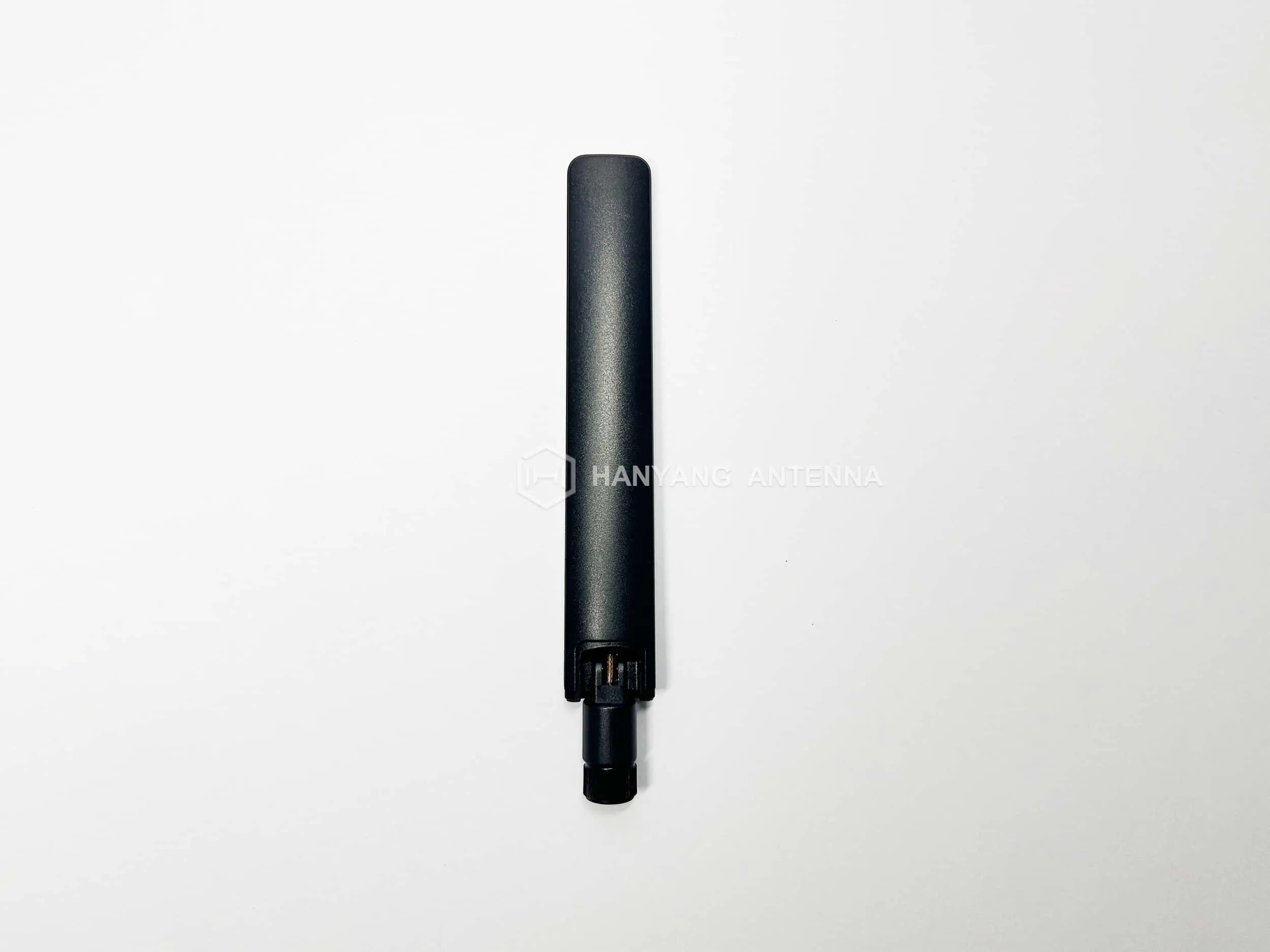

IMG_8508-1
IMG_8381-1

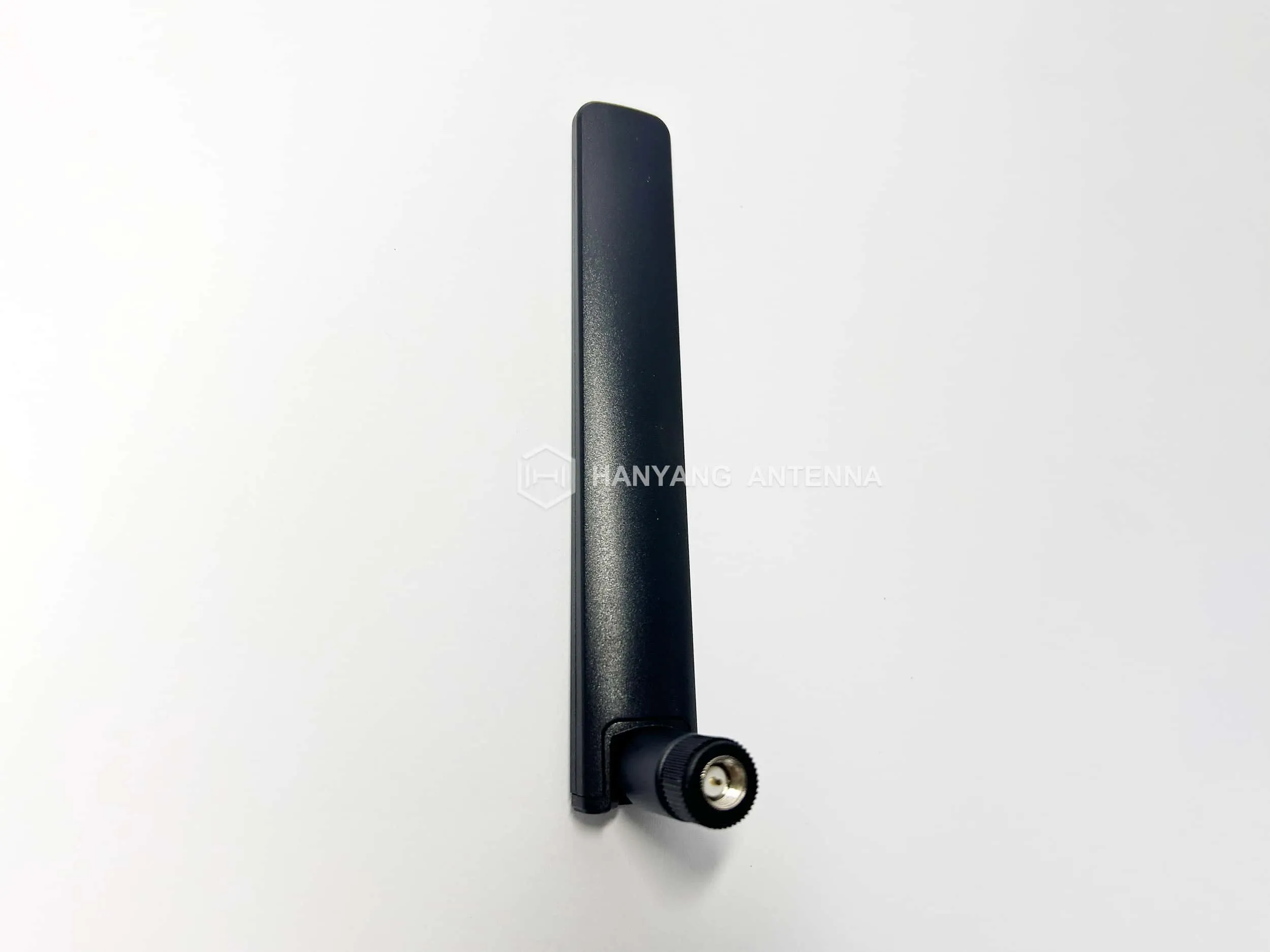

IMG_8510-1
IMG_8379-2-1
IMG_8508-1
IMG_8381-1
IMG_8510-1

External 5G Antenna indoor,IoT,600-960MHz,1710-2690MHz,3300-6000 MHz,SMA-J, F01201000310

频率范围:600-960MHz/1710-2690MHz/3300-6000MHz
尺寸:∅ 152.0*22.0*15.0 mm
驻波比 :≦2.5
接头型号:SMA-J
阻抗:50Ω
辐射方向:Omnidirectional
极化方式:Linear
工作温度:-30℃- +75℃

Passive Antenna Parameters
Return loss meter
Frequency Point(MHZ)600960171021702300269033006000
VSWR(dBi)Lie1.691.751.261.691.231.531.251.14
VSWR(dBi)(Bent90°)1.591.551.331.721.261.521.321.17


Return Loss


Return Loss


VSWR


 VSWR


Passive Test Data
Gain and Efficiency


Gain and Efficiency


Gain and Efficiency


Frequency Point(MHZ)60078096017101960217023002690330053006000
Efficiency [%]40.648.75764.852.65356.652.680.766.149.2
Peak Gain [dBi]-0.11.713.161.941.842.683.870.941.972.081.84


Antenna  Radiation Pattern

Antenna  Radiation Pattern

Antenna  Radiation Pattern
